O-Ring Face Seal Adaptors (ORFS)

Dash 4 to dash 24 9/16″ to 2″
Imperial threaded flat face female – male with matching imperial threads and o-ring groove in the face – similar in concept to the SAE flange.

Category: Adaptors

Description

Carlton Comment

The O-Ring Face Seal Adaptors (ORFS) is a relatively new design in the world of hydraulics, popular with machine manufacturers – particularly in the USA.

The flat face means the adaptors sealing edges are less likely to deform and the o-ring is easy to replace.

Together with the range of braze adaptors and hose-tails, we are seeing the ORFS hose and pipework solution, replacing the older JIC flare and pipe thread systems.

Typical Applications

Ideally suited to high pressure, constant vibration scenarios, including:
• Excavators
• Wheel loaders
• Backhoes
• Bulldozers
• Skid-steer loaders
• Motor graders
• Compactors
• Trenchers
Increasing used in new equipment designs- particularly from the USA.

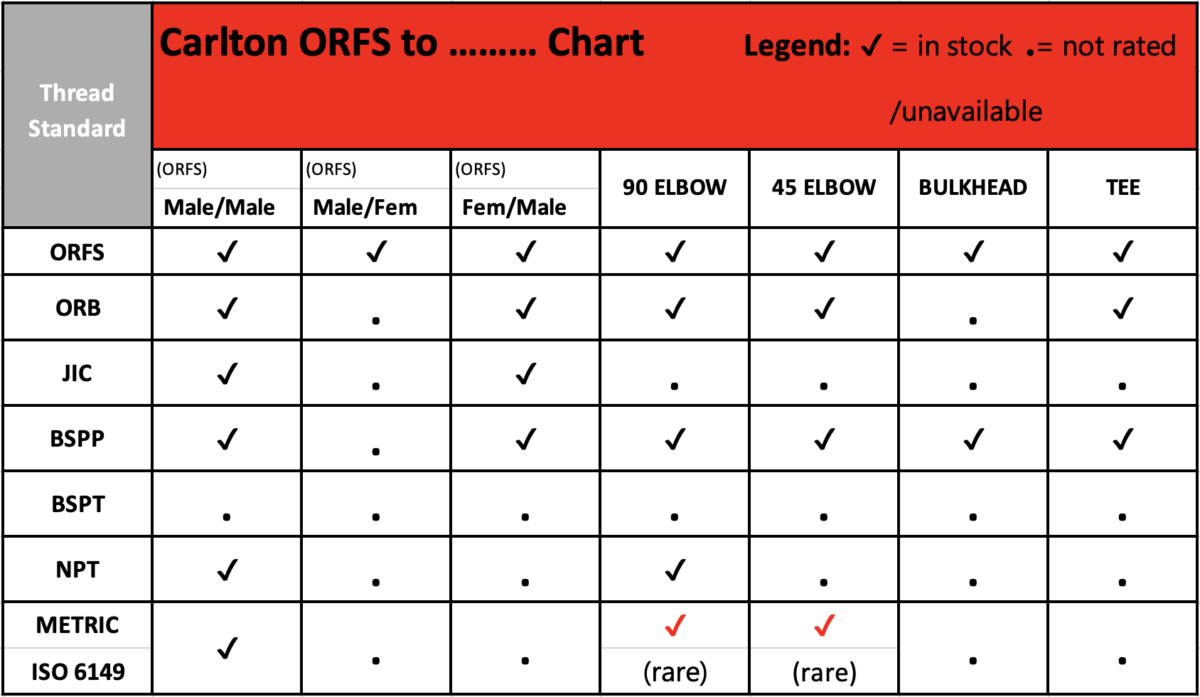

At Carlton we are keen to keep as many combinations of O-Ring Face Seal Adaptors (ORFS) as is available. Below is a Chart to show exactly which combinations we stock including some rare finds.

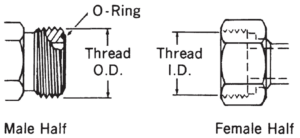

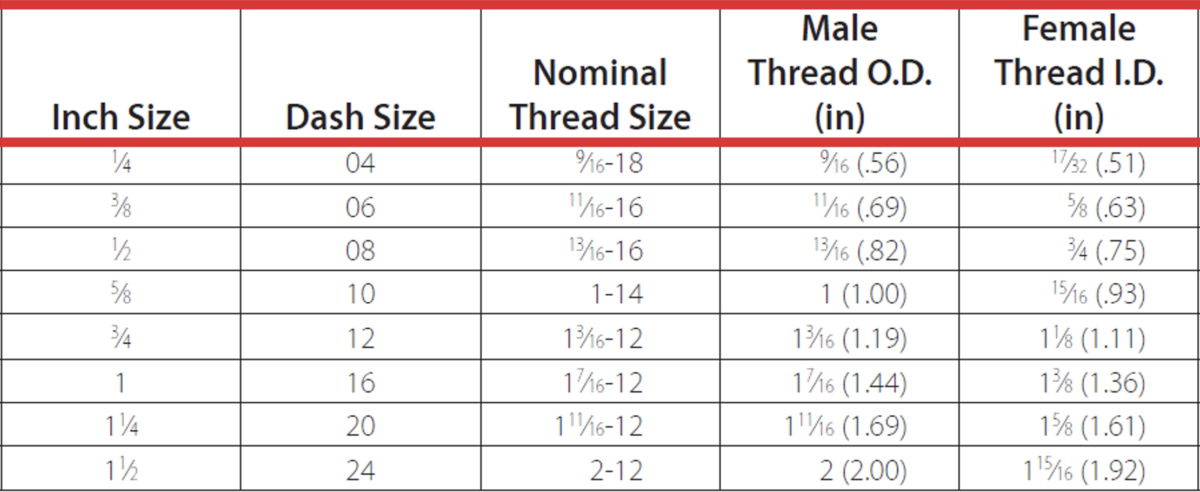

ORFS Thread Dimensions

Assembly Instruction for ORS Tube Fittings:

Step 1

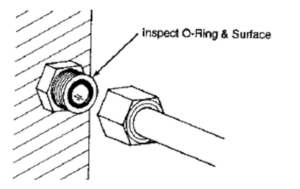

Inspect sealing surfaces and O-Ring groove for damage or foreign material. Check the O-Ring to insure that it is properly seated in the O-Ring groove.

Step 2
Lubricate threads with heavy lubricant (such as part number 222070 Lube).

Step 3

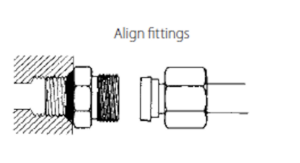

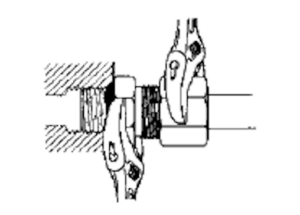

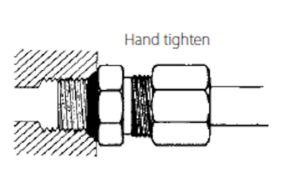

Align the ORS Tube Fitting to the flat sealing connections and tighten the nut by hand. The nut should tighten easily by hand if properly aligned.
