Aeroquip Railspec Hose

Railspec EN 45545-2


Aeroquip Railspec Hose

Continual improvements in fire safety and technology has lead to the EN 45545-2 unified standard for hose lines on railways, for all European countries. These hoses are commonly referred to as Railspec hoses.

Danfoss has develop a specific Railway portfolio hose range, with EN44545-2 stamped on the lay line as well as qualifying hoses from the standard Aeroquip by Danfoss portfolio.

  • EC112 1SC 1/4" to 1"
  • EC109 1SN 3/8" to 1"
  • FC510 1SC AQP 1/4" to 1,1/4"
  • EC212 2SC 1/4" to 2"
  • EC209 2SN 1/4" to 1"
  • EC045 2TE 3/16" to 1"
  • EC060 3TE 1/4" to 1,1/4"
  • EC190 R4 3/4" to 3"
  • EC155 1/2" to 1,3/8"
  • FC800 Dash 12 to 24
  • GH506 4SH 3/4" to 2"
  • GH466 R15 1,1/4" to 2"

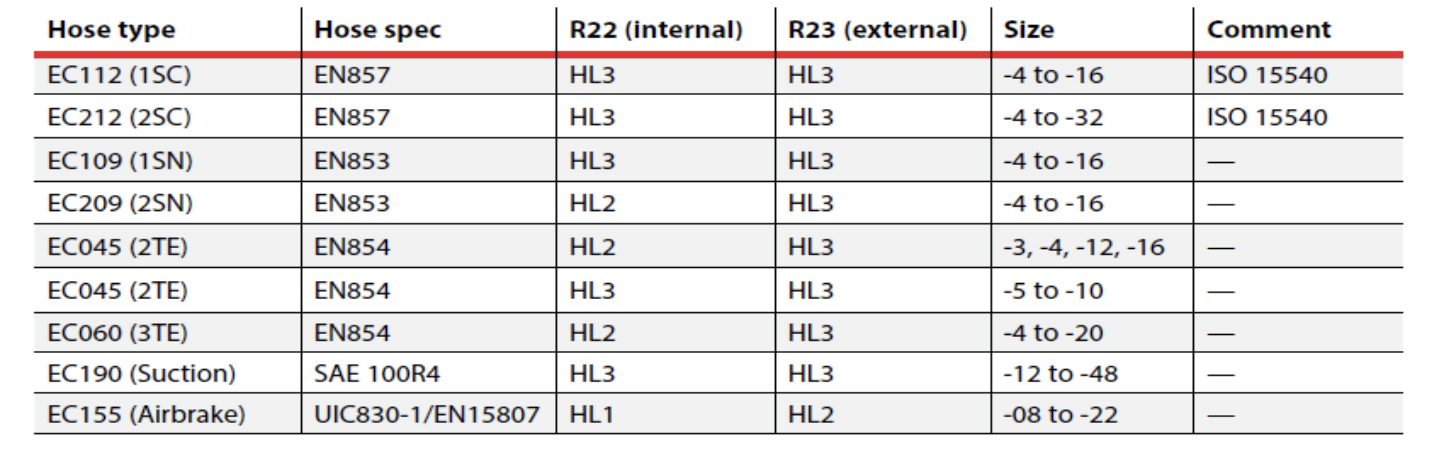

Railway Portfolio Hoses

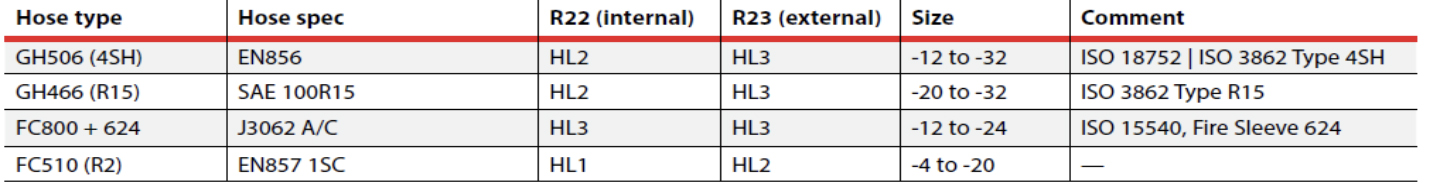

Standard Portfolio Hoses qualified to EN45545-2

1 Wire Hose

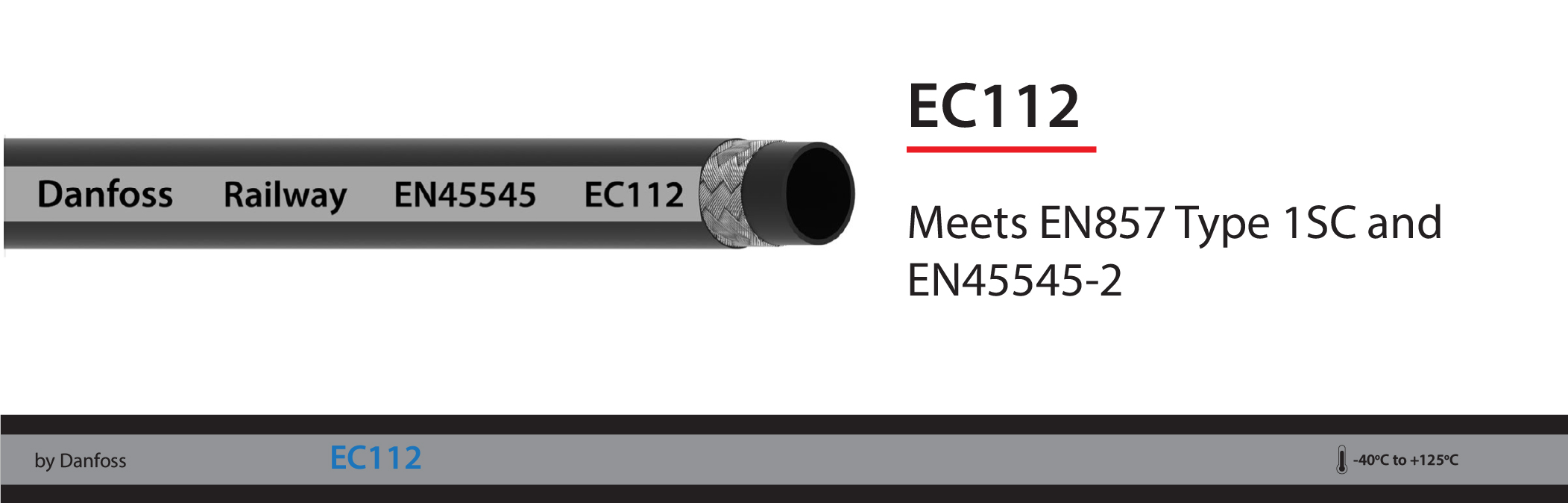

EC112 INFORMATION

EC112 1SC, 1/4" to 1"

Low and medium pressure hydraulic applications.

RL22/HL3
RL23/HL3

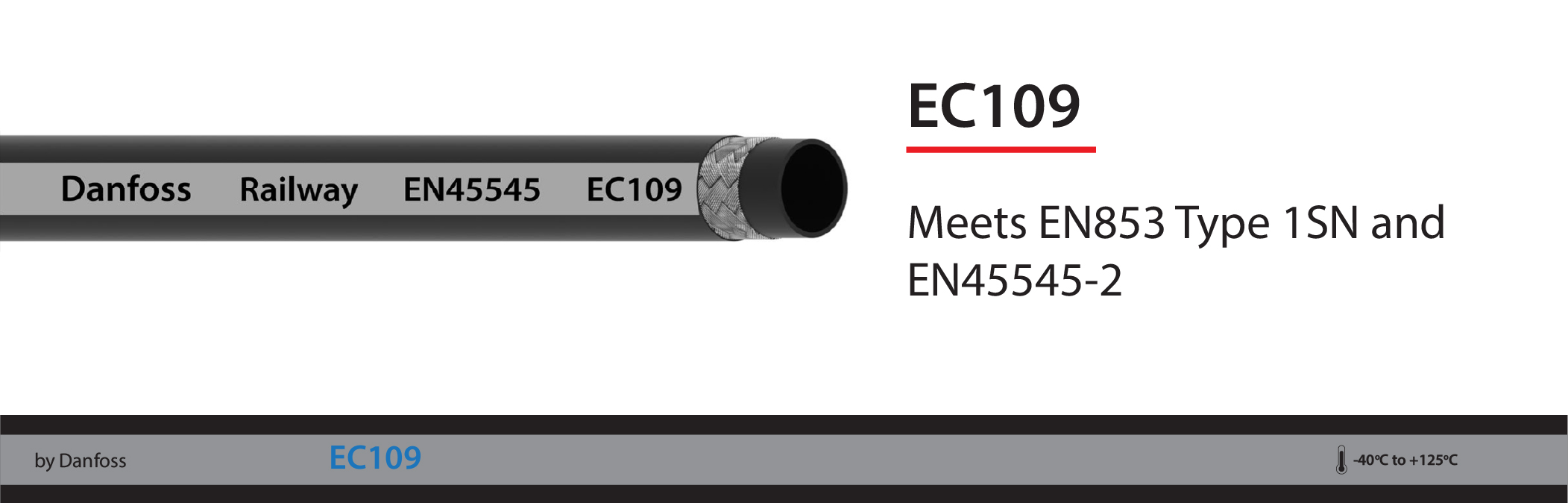

EC109 INFORMATION

EC109 1SN, 3/8" to 1"

Low and medium pressure hydraulic applications.

RL22/HL3
RL23/HL3

FC510 INFORMATION

FC510  1SC AQP 1/4" to 1,1/4"

Low and medium pressure, hi-temp applications up to 149ºC.

RL22/HL1
RL23/HL2

2 Wire Hose

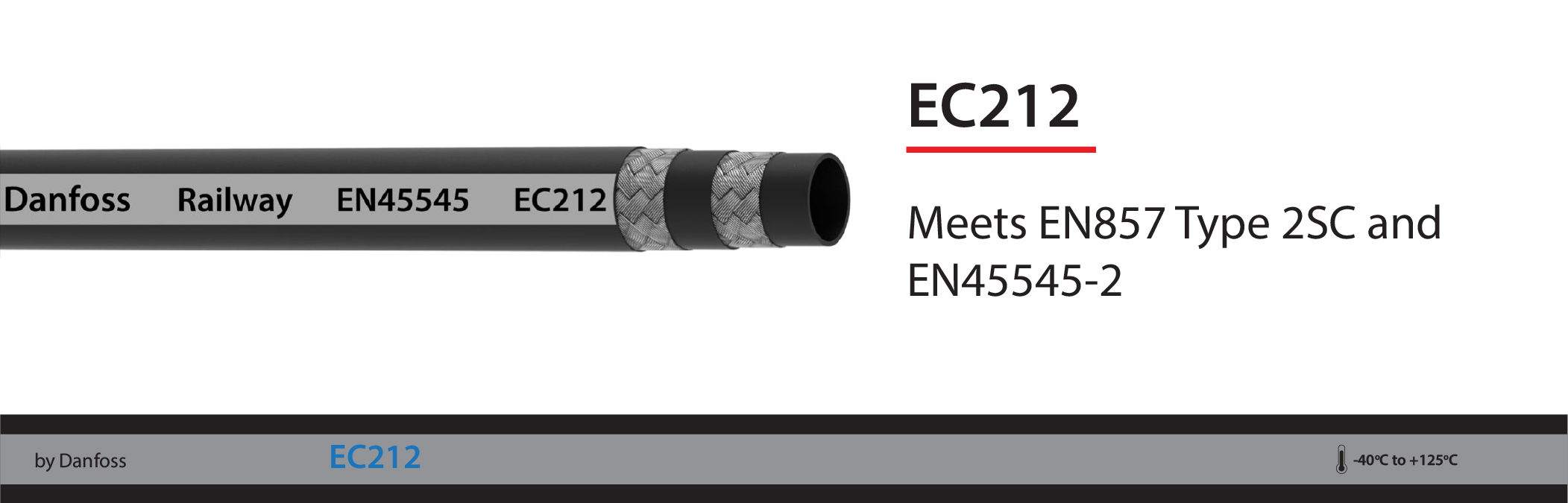

EC212 INFORMATION

EC212 2SC 1/4" to 2"

Medium and High pressure hydraulic applications.

RL22/HL3
RL23/HL3

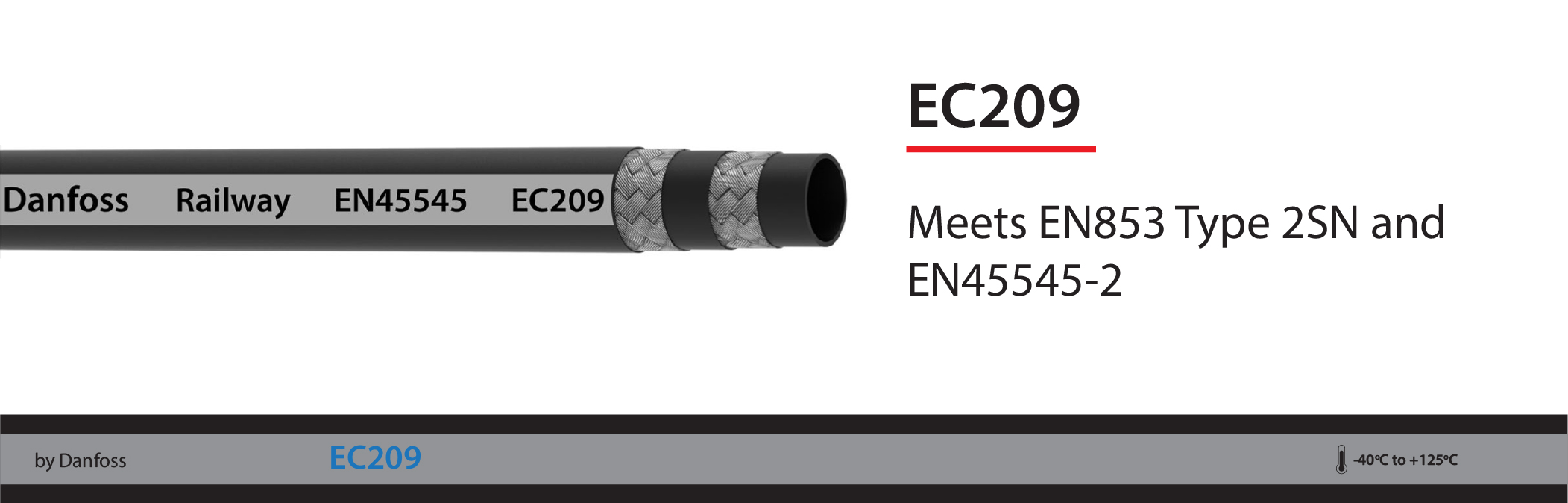

EC209 INFORMATION

EC209 2SN 1/4" to 1"

Medium and High pressure hydraulic applications.

RL22/HL3
RL23/HL3

2TE Hose

EC045 INFORMATION

EC045 2TE  3/16" to 1"

Low pressure applications.

RL22/HL3 (-5 to -10)
RL22/HL2 (-3, -4 , -12, -16)
RL23/HL3

3TE Hose

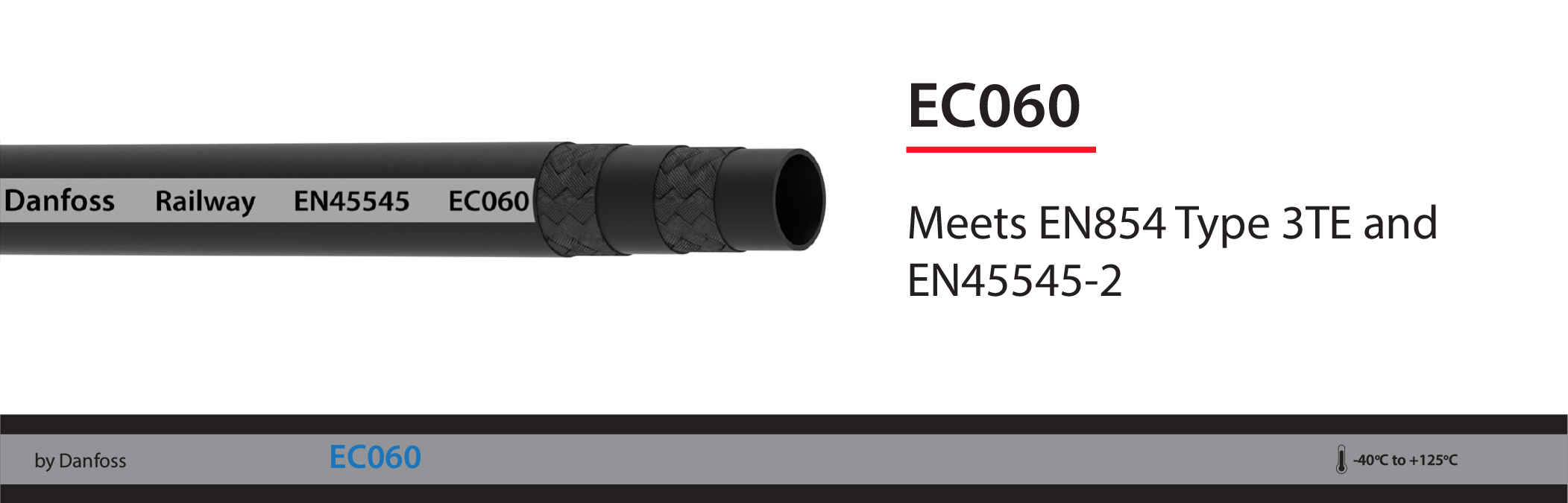

EC060 INFORMATION

EC060 3TE 1/4" to 1,1/4"

Low pressure applications.

RL22/HL3
RL23/HL3

R4 Hose

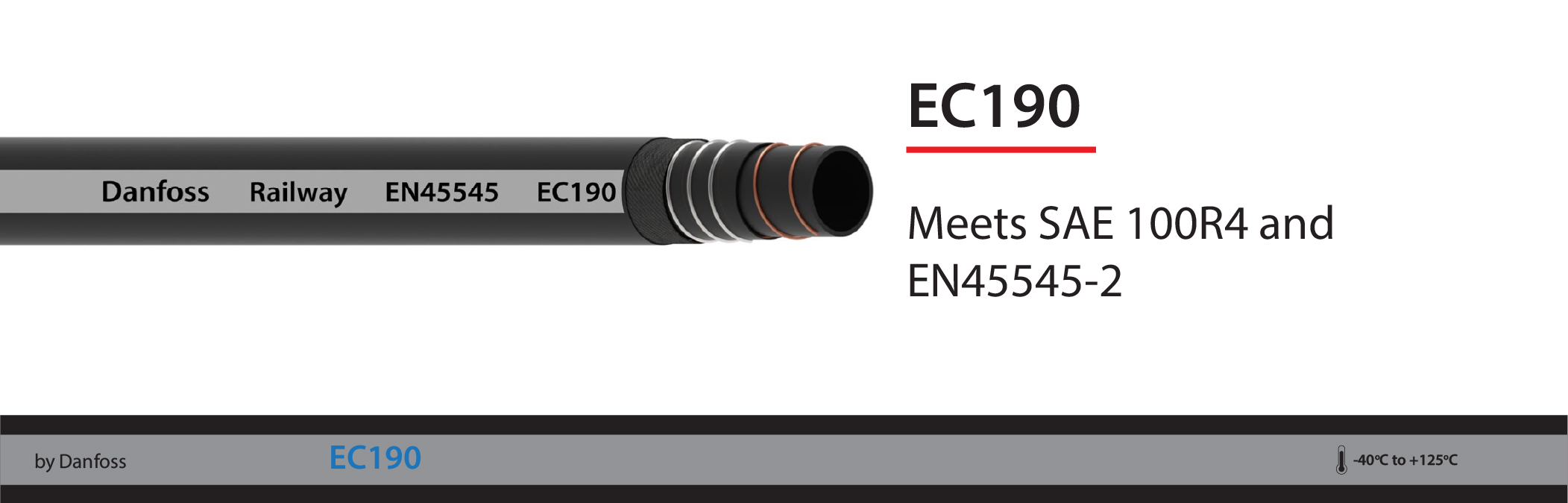

EC190 INFORMATION

EC190  R4  3/4" to 3"

Suction applications.

RL22/HL3
RL23/HL3

Airbrake

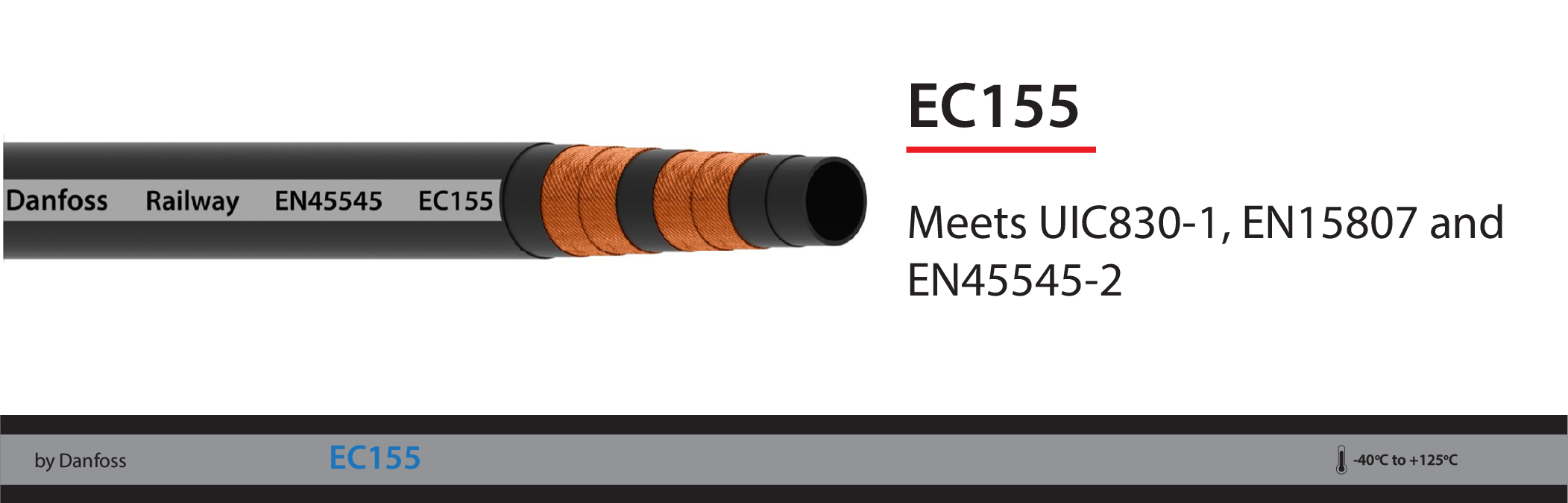

EC155 INFORMATION

EC155 1/2" to 1,3/8"

Airbrake applications.

RL22/HL1
RL23/HL2

Aircon

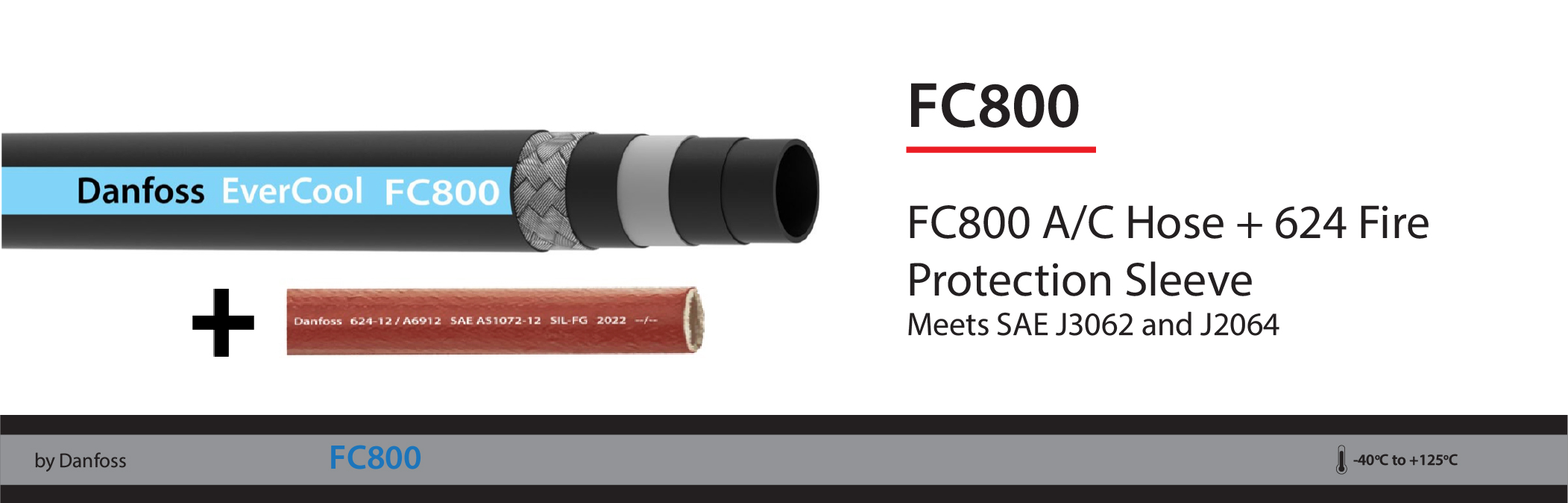

FC800 INFORMATION

FC800 Dash 12 to 24

Only compliant with firesleeve fitted Air conditioning and refrigeration.

R22/HL3
R22/HL3

4SH

GH506 INFORMATION

GH506 4SH 3/4" to 2"

High pressure hydraulic applications.

RL22/HL2
RL23/HL3

GH506 - Core premium four wire spiral hose

6 Wire

GH466 INFORMATION

GH466  R15 1,1/4" to 2"

High Pressure Applications.

RL22/HL2
RL23/HL3

GH466 - Core premium six wire spiral hose
Contact one of our team for a quote
